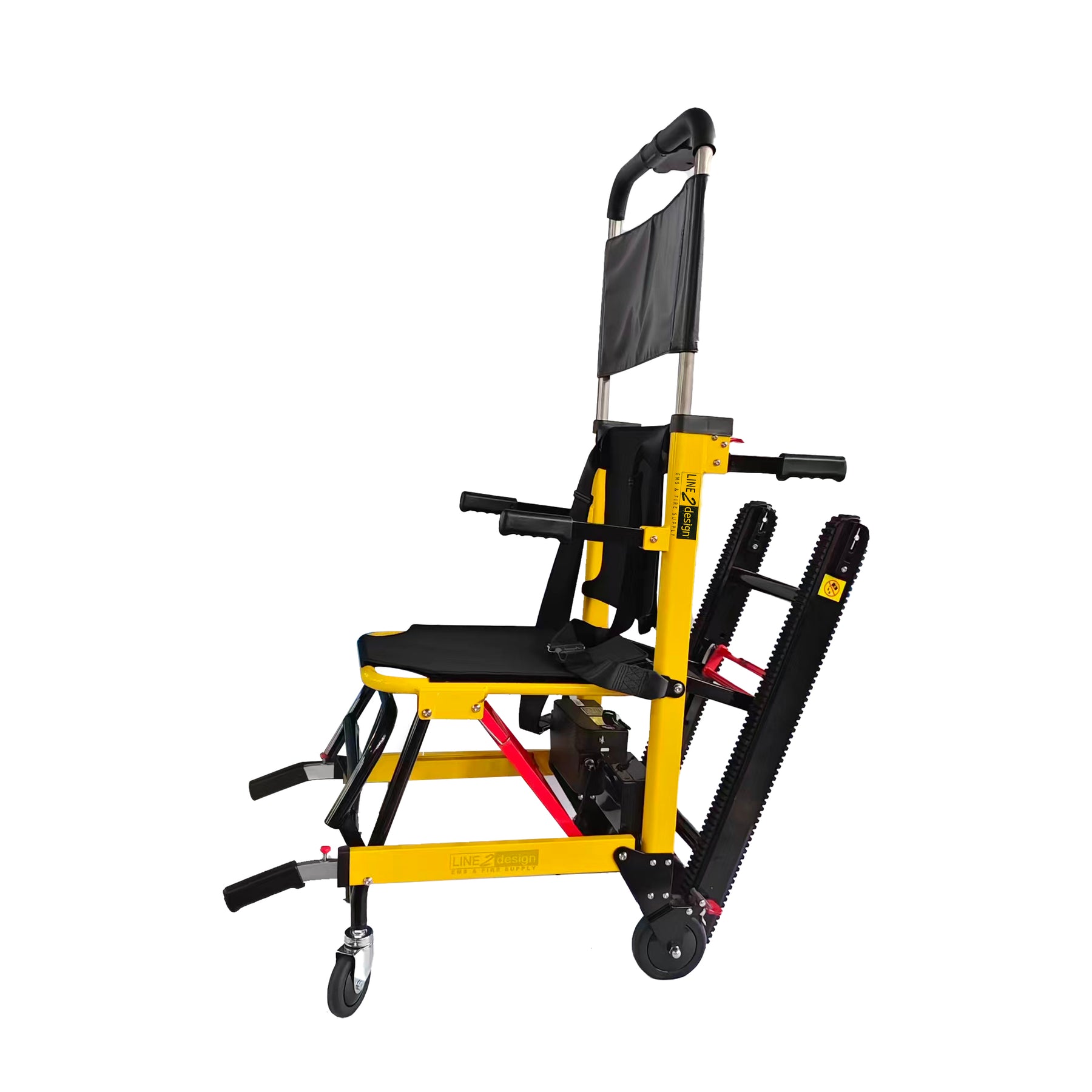

LINE2design-USA- Motorized Mobile Stair Chair Lift Climber-70019-Y-BAT

SKU:

70019-Y-BAT

$1,379.00 $1,279.95 Save $99.05
/
Shipping calculated at checkout.
  • Free Shipping Continental US
  • In stock, ready to ship
  • Backordered, shipping soon

LINE2design is a USA based company and offers the best Motorized Mobile Stair Lift Climber, allowing you to provide the safe transport of patients up and down stairs.

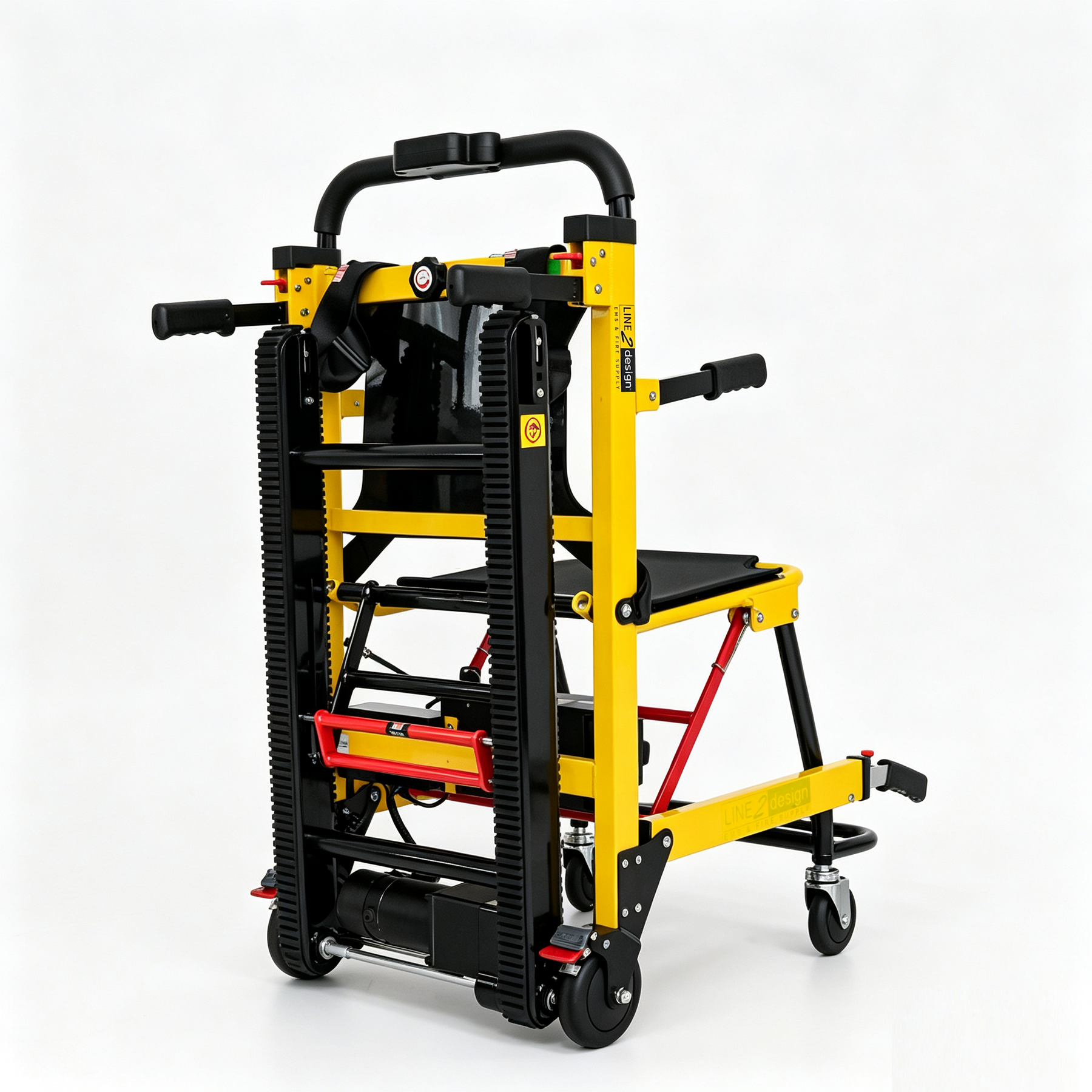

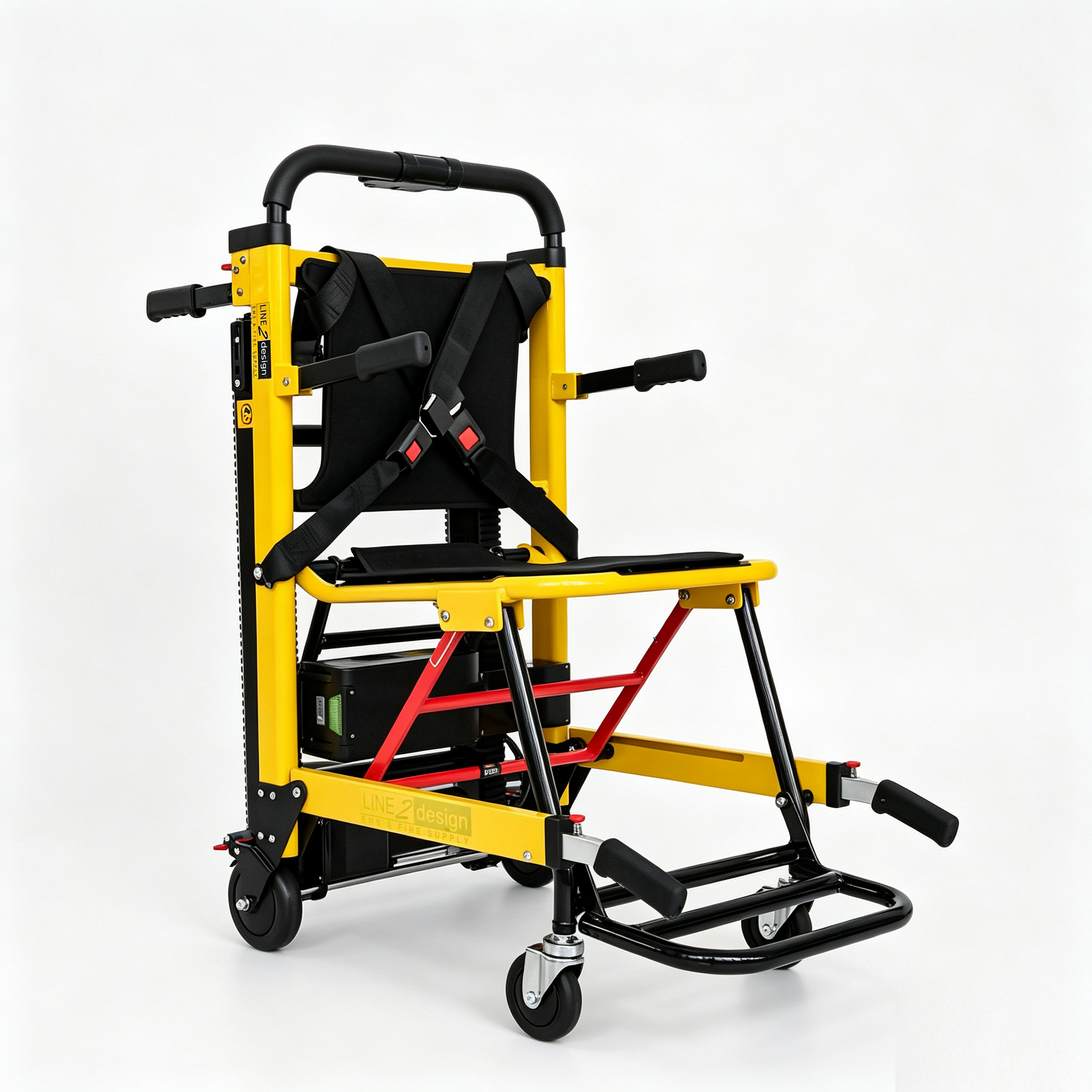

The Battery Powered Lift Track Stair Chair has a power track system that makes transporting patients up and down stairs an easy task. The motorized track system provides controlled transportation up and down stairs. When operating this chair the power tracks make contact with the stairs, allowing the chair to glide over the edge of the stairs eliminating the need to lift the patient and chair. The LINE2design Stair Lift Stair Chair can be used for medical transport, emergency evacuations, and daily assistance going up and down stairs.

The LINE2design Motorized Stair Lift Track Stair Chair is a superior emergency evacuation stair chair and provides mobility solutions when you need it the most. This easy to use and cost effective design is the number one choice by many professionals.

Learn more about the #1 motorized stair lift by LINE2design.


California Customers: Our stair chairs are AB 3098 compliant.

By July 1st, 2019, all residential care facilities for the elderly must have an evacuation chair at each stairwell as part of their emergency and disaster plans.

Click here to learn more

Product Documents:

Download Instructions

Download Specifications

  • Model # 70019-Y-BAT
  • Height: 62”
  • Width: 20 ½ “
  • Length: 31 ½ “
  • Weight: 66 lbs
  • Turning Radius 47.24"
  • Max load capacity: 400 lbs
  • Maximum stair pitch 45 degrees

More Details

  • Battery Powered Track Stair Chair
  • 24 Volt, Takes 6 hours to fully charge, provides 2-3 hours of continue use, "Estimate" Battery comes with 2 Keys
  • Battery Input Voltage and Current: 29.4V 2A
  • Battery Charger
  • 2500 Stairs on a Full Charge
  • 2 Seconds per Stair with full charge
  • Tubular Frame Construction

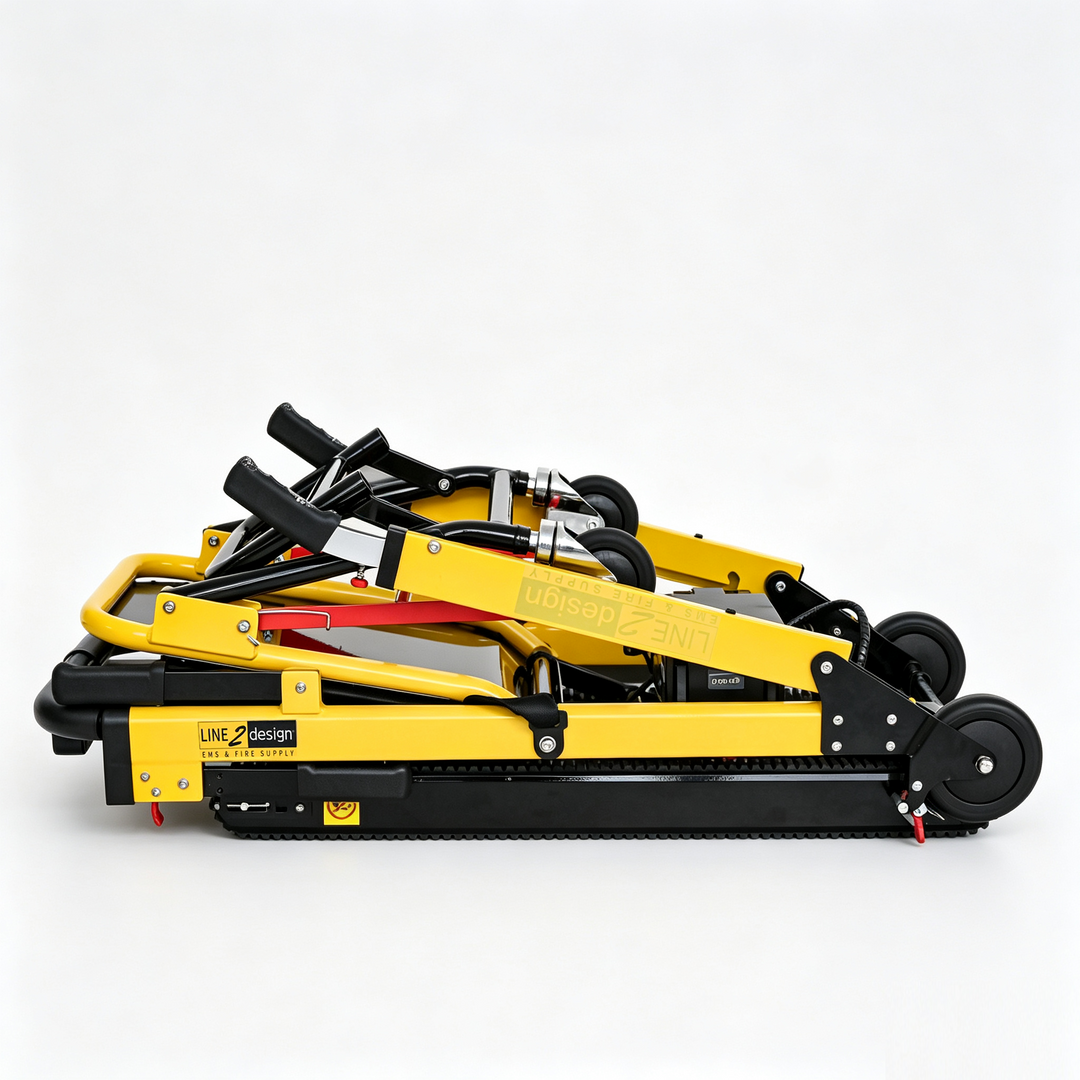

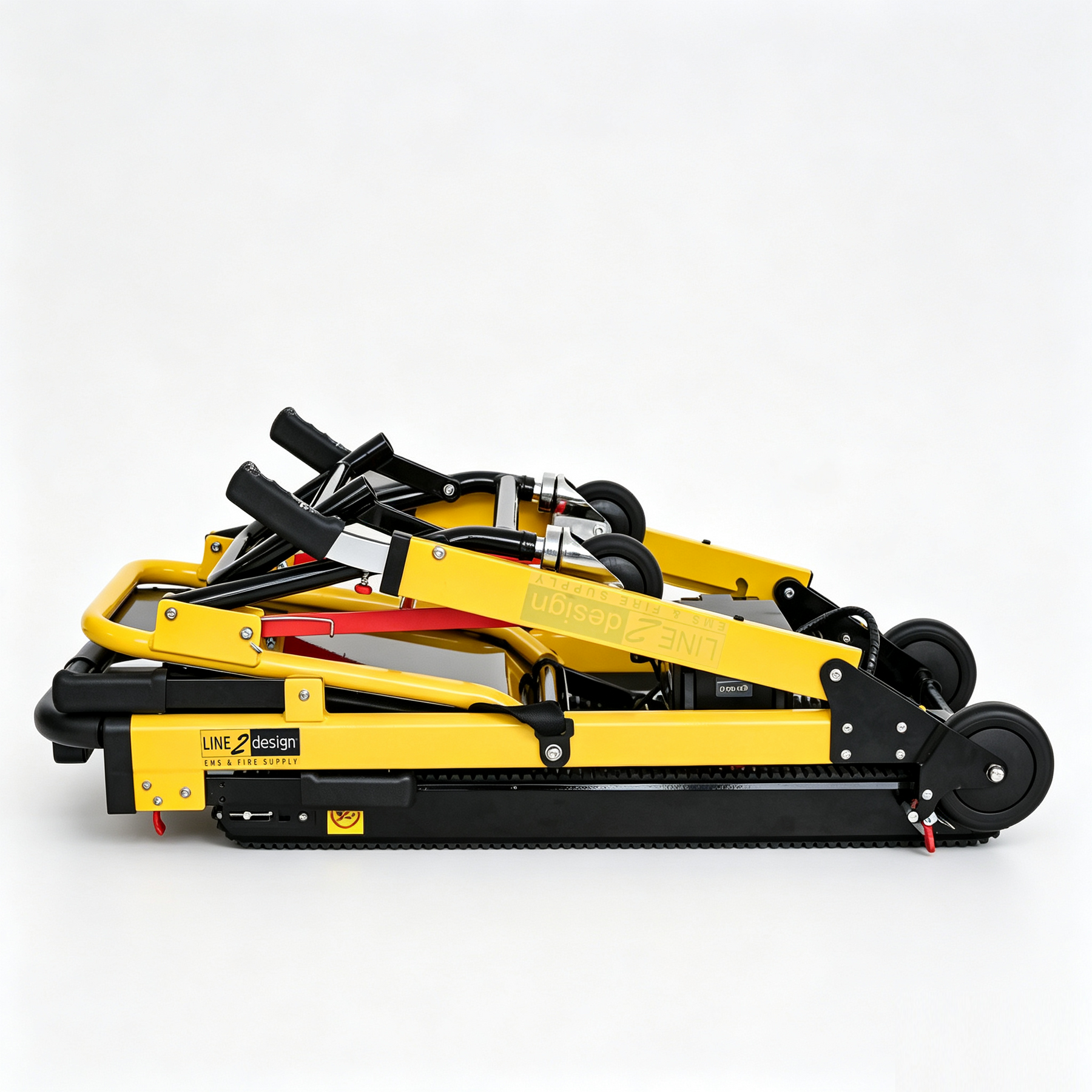

  • Folded Size: 41” x 21” x 11”

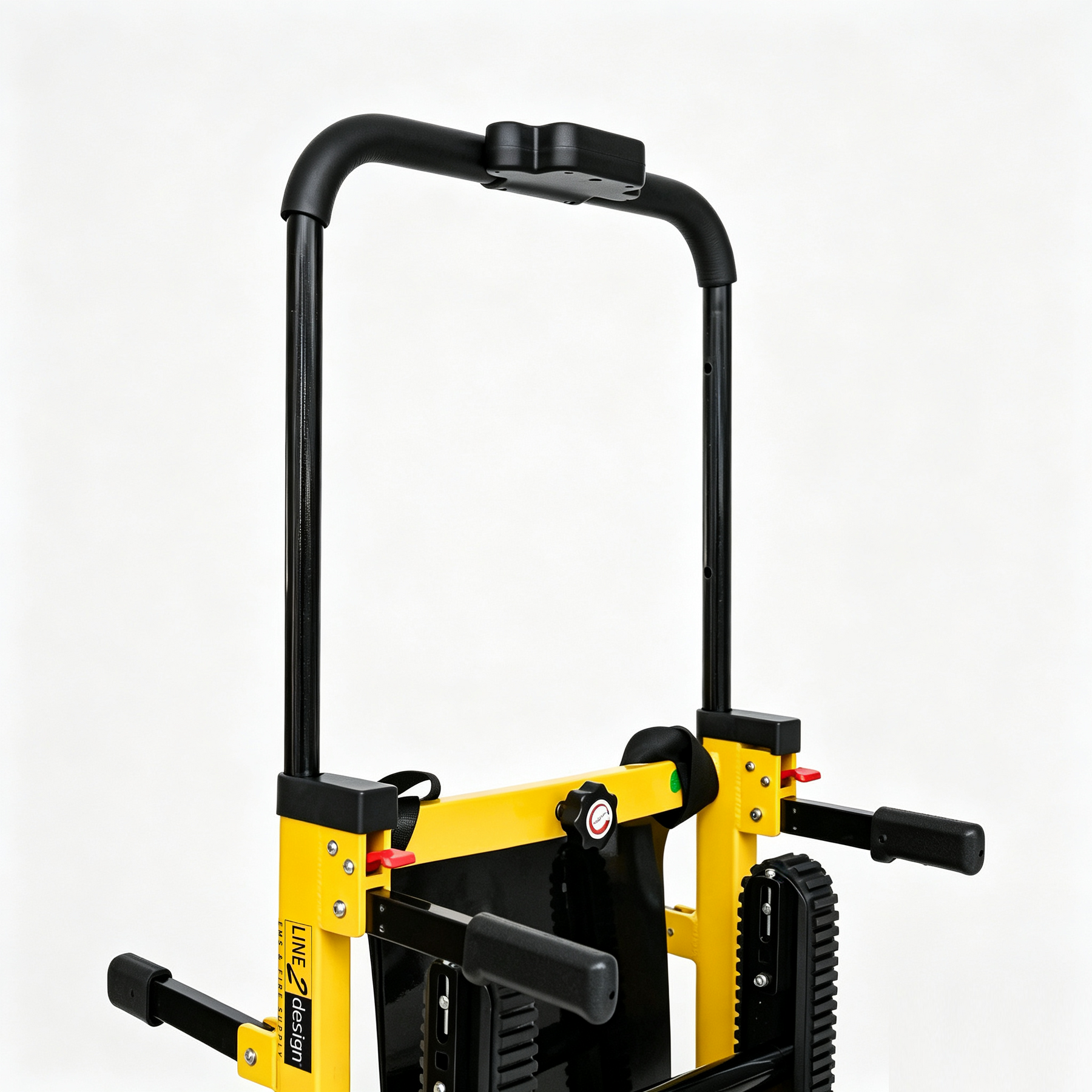

  • Height Adjustment: 41” to 62”
  • Adjustable Head Support

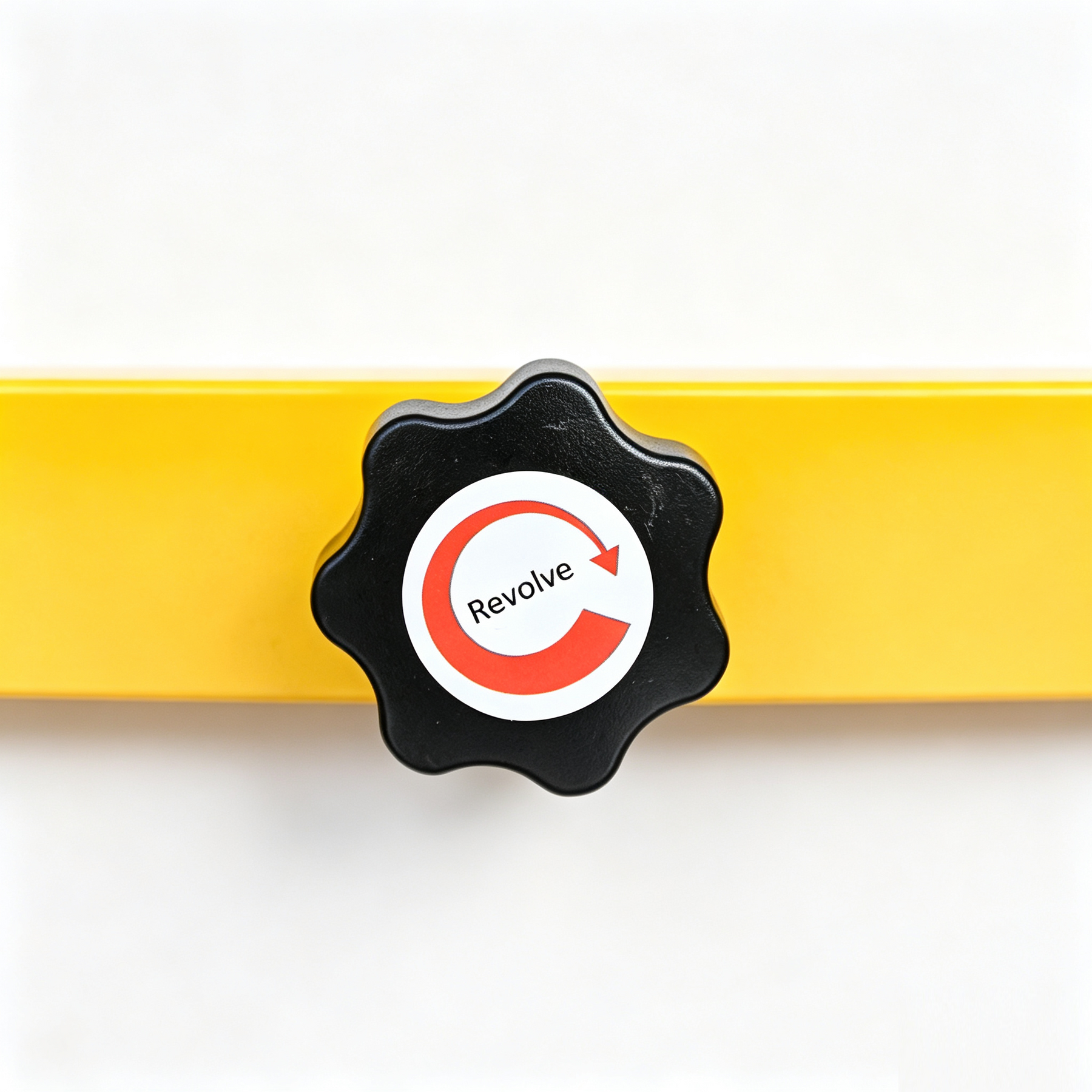

  • 3 Position Track Angle

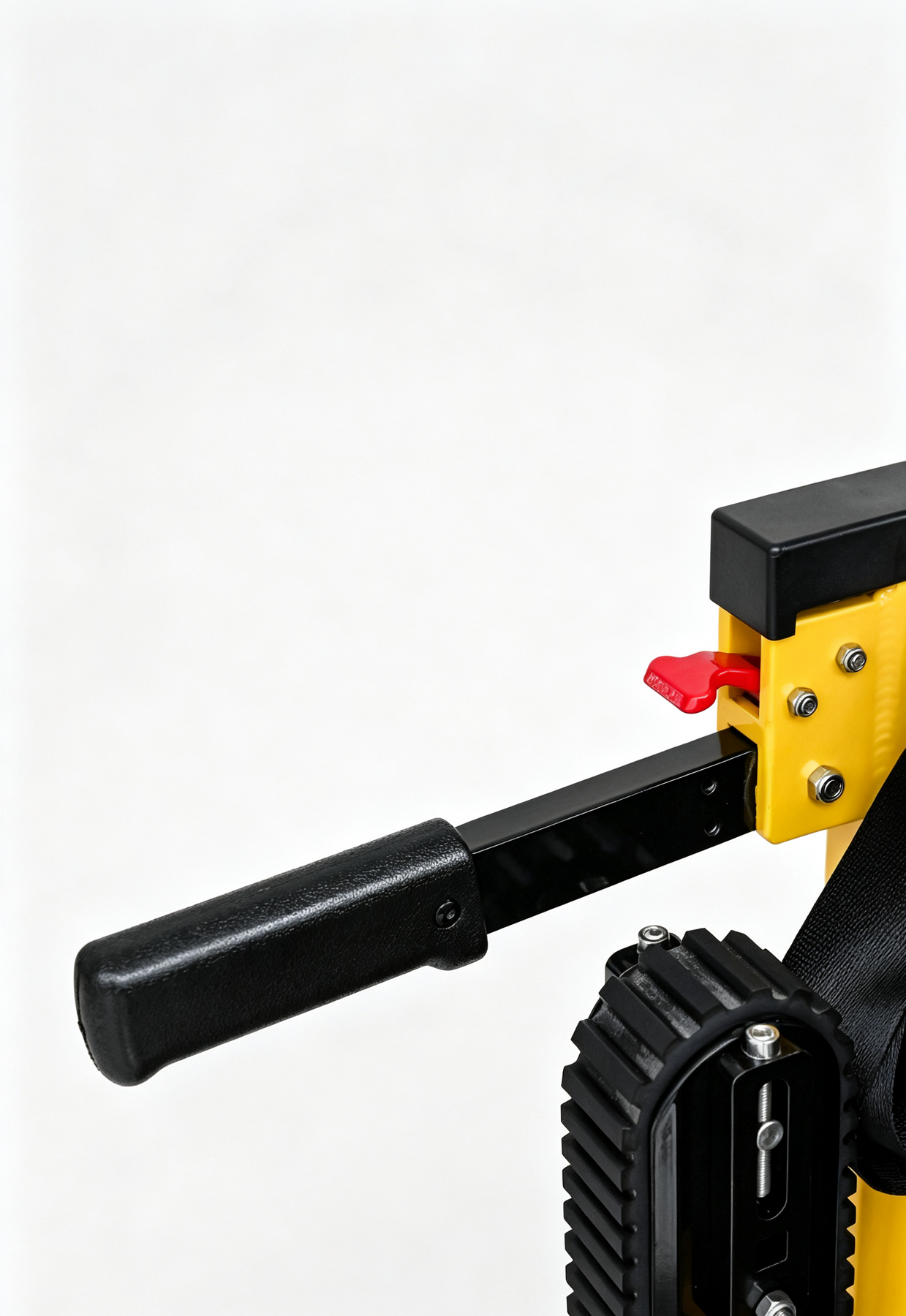

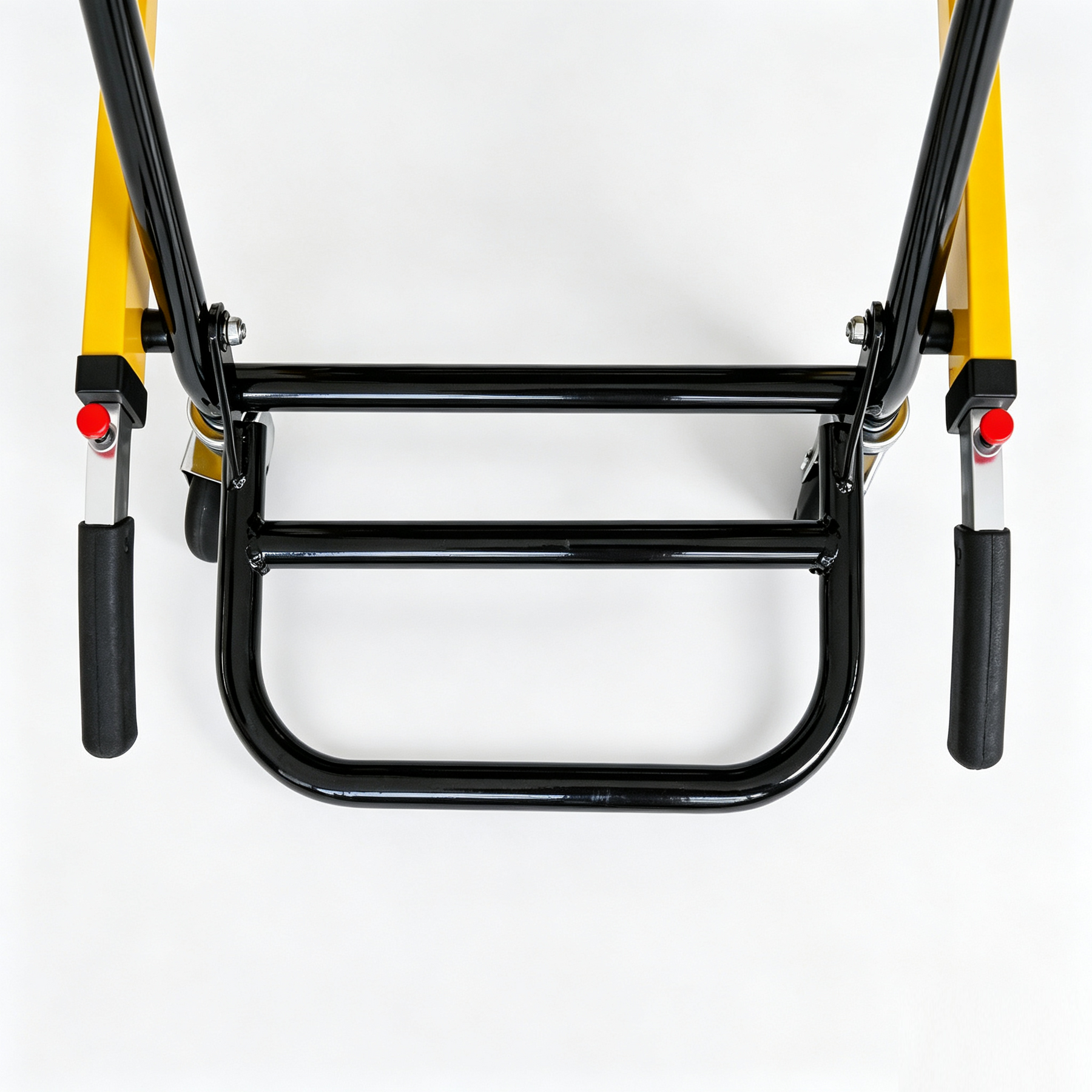

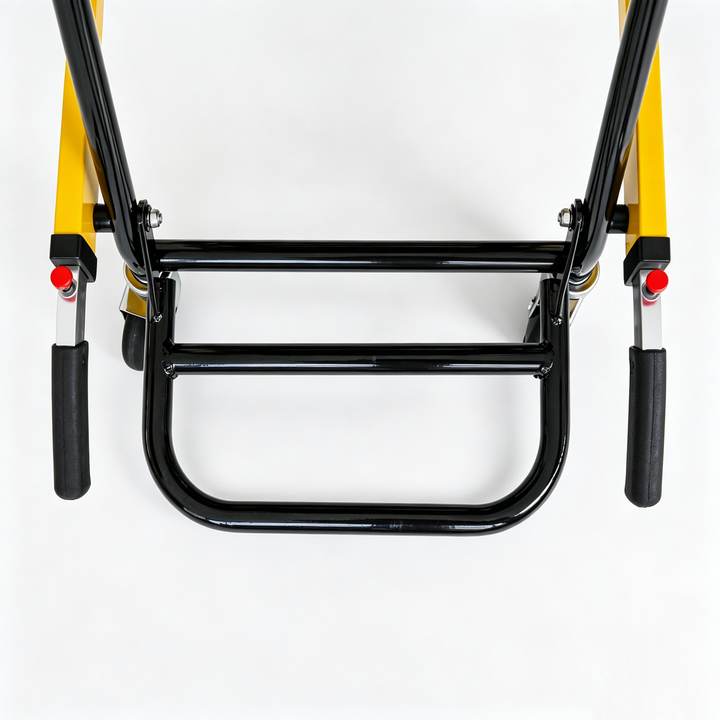

  • Molded Hand Grips
  • Sturdy Seat Restraint
  • 5 “ Rear Wheels with Brakes
  • 4“ Front Swivel Castor Wheels

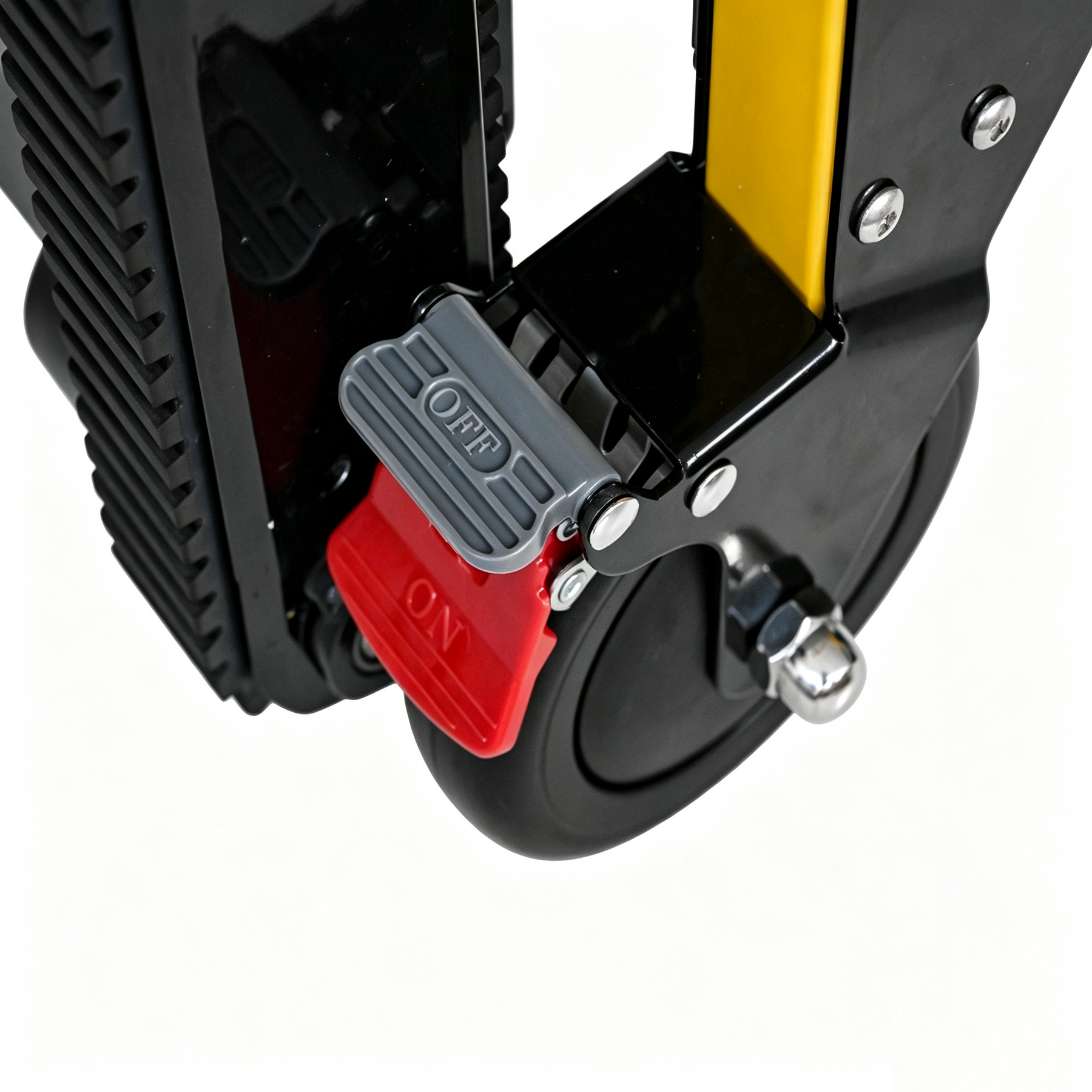

  • Rear Wheel Foot Brakes
  • Foot Rest
  • Easy Set-up
  • Folds Compactly for Storage
  • Bright Yellow for High Visibility
  • Track adjustment: 0, 15 & 18.5 degrees

Warranty

LINE2design, Inc. offers a Limited One Year Warranty that covers manufacturer defects in materials and workmanship. If for any reason you find a defect or something is not working properly, do not use the chair for any reason, until you get the chair evaluated by an approved repair facility.

FAQs

The differences between red battery chair and yellow battery chair are listed in thedetails section highlighted in red. The main difference is the load limit on the red battery chairs is 440lbs and the yellow battery chair is 400 lbs. The red battery chair has larger 10-inch rear wheels and 5-inch front wheels to provide better transportation over rougher surfaces. In addition, the tubular frame is slightly thicker providing more stability. There are other important enhanced features you can see on the website. If you need more specific information, please email us at info@line2design.com.

You may charge the battery while secured to the chair or removed from the chair. Also, it is recommended to charge the battery in the power off position. For further instructions, please see our YouTube video. Search LINE2design and locate the instructional how to battery video.

Three plus years with proper care. Turning off the chair completely when not in use or in storage will help preserve the battery. When storing for extended periods of time, periodically check it and turn it on, treat it like a car battery.

Wood, concrete, metal and carpeted.
Note: Carpet should be in good repair, tightly installed with no rips or tears.

LINE2design,Inc. offersa standard 30-day return window along with a one-year limitedwarrantyfor the chairs listed below. The warranty covers manufacturer defects in materials and workmanship.
Please review the complete policy on our website.The warranty is for the following stair chairs only:
SKU:70002-Y
SKU:70004-Y
SKU:70005-O
SKU:70006-R
SKU:70007-Y
SKU:70008-R-BAT
SKU:70010-BL
SKU:70015-Y
SKU:70019-Y-BAT
SKU:70025-R

Each stair chair comes fully assembled and ready to go. All you need to do is unfold the chair once it is out of the box. The motorized chairs require charging the battery with the included battery charger prior to use.
